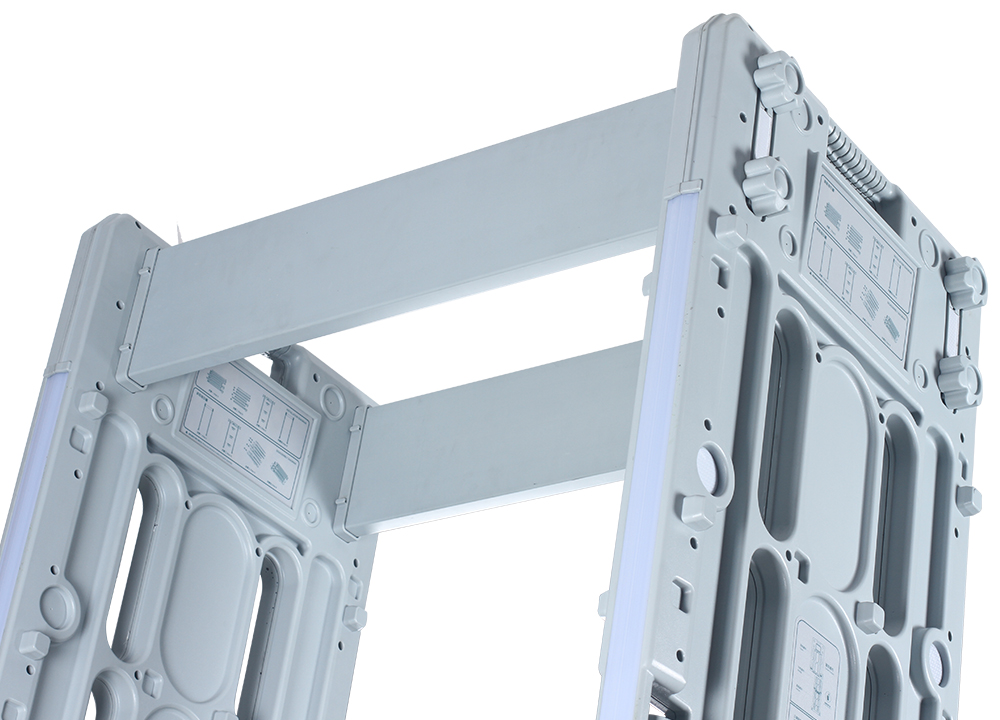

Large Activities Multi Zone Walk Through Scanner Detector With Back Up Battery
Advanced Technology:
- Mobile connection technology: realize mobile APP remote control
- IP Grade: IP67 superior waterproof performance
- Self calibration once power on
- Self diagnostic, it will inform the user when exit the system
- Start-stop technology:infrared devices with automatic
- start-stop technology.
- Multi-zone technology: 8,16,24 detection zones,can change detection zones intelligently (upgrade technology of each zone can be provided).
- Touch screen: 7-inch HDMI LCD touch screen,iPad interface style,easy to operate and understand.
Features and Functions:
● Move after folded or installation(two move methods to choose)
● Detection technology: Even detection technology,no blind spot
● Internet technology:Remote upgrade system and remote control system
● Working band: 120 working bands
● Sensitivity of each detection zone:255 level
● Statistics: Record the pass and alarm numbers
● Query function: The system has real-time information query function
● Intelligent Standby: The system has intelligent standby operation alerts
● Detection speed: more than 60 people pass and detect in 1 minute● Adjustable sensitivity of each detection zone
● Multi-alarm sounds to choose
● Operating frequency can be adjusted manually or automatically
Technical Parameters:
● Detection objects: knives,guns,coins ● External Dimension:2250x850x500mm
● Passage Dimension: 2051x710x500mm ● Fold Dimension:889x606x484mm
● Packing Dimension: 948x666x525mm ● Humidity: 99%, non-condensing
● Working environment: -40 ℃~85 ℃ ● Weight: NW 42KG, GW 50KG
● Input : AC 110V~240V/50Hz~60Hz ● Output : DC 12V/5A 12W
● Power supply: the whole system is equipped with polymer battery,life time 8,16,24,48,72
hours optional.
Packing:
Fold Dimension : 889x606x484mm
Packing Dimension: 948x666x525mm
Volume: 0.33m3
NW: 48KG
GW: 53KG
