Multi Zone Walk Through Security Scanners Metal Detector Door For events

Heyuan Zhonganxie Technology Co., Ltd
Contact Now

Multi Zone Walk Through Security Scanners Metal Detector Door For events

Brand Name : Arsenal

Model Number : Arsenal-24a

Certification : CE, FCC, ROHS

Place of Origin : China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000pcs per month

Delivery Time : 5-7 working days

Packaging Details : carton boxes

Working voltage : 90-240V

Power consumption : 20W

Working frequency range : 1-50 bands

Maximum sensitivity : Minimum 6g metal

display : digital screens

Inferad detector quantity : Four

Contact Now

Multi Zone Walk Through Security Scanners Metal Detector Door For Government

Features

  1. Simple and elegant front panel design, reasonable 4 keys management,easy to operate.
  2. atented structural components, and windproof, moistureproof, dustproof design.
  3. High performance , high sensitivity , high stability,it can detect 6g ferrous metals (flaky landscape) accurately.
  4. Multi-probe , multi-zone, multi- launch and reception , interactive detection technology .
  5. Set each zone's sensitivity freely,and it can effectively exclude their own keys, belt buckles, bra, mobile phones and other metal objects.
  6. High strength thick door made of fireproof board , forming aluminum column structure , after antioxidant treatment , high hardness ,no deformation , not easy to scratch .
  7. Slant main chassis designed all-metal structure , patented large countersunk head bolts for doors, easy to assemble , the structure is more stable.
  8. The super brightness SMD double district alarm indicators , multi-angle display the hiding place of prohibited items.
  9. High-decibel alarm sound speakers,set the size of the alarm sound or be mute according to user's need.
  10. It can be connected to the Internet, through a single PC and special software ,it can manage multiple devices ,to meet the need of large-scale activities , events , and users who have to manage multiple devices at a time.
  11. Able to link external devices such as : three roller gates, wing gates , access control, attendance, and the devices that need to control and register each other.
  12. With upgrade ports, we provide lifelong upgrade services, it can be achieved the secondary development according to user's need.
  13. The 3D multi-angle infrared design, can better prevent the interference of strong light, sunlight and other external light ( patented technology )
  14. The unique infrared start-stop technology, is better to meet customers' need.
  15. Full wraparound high booties , double pivot design , and not affected by uneven ground , it can be better to ensure the stability of the door , which has depended beyond the traditional design.
  16. On each side of the door designed is the power interface, which can better meet the users' needs.

Specifications

Vertical dimension 2200x500x830mm
Vertical channel size 2000x700mm
Main box packing size 755x340x210mm
Detection door panel packing size 2290x630x190mm
Net weight of main box/detection door 59.1KG
Gross weight of main box/detection door 66.1KG
Working voltage 90-230V,50/60Hz
Power consumption 12W
Working frequency range 1-50 bands
Working environment temperature -20℃ ~ 65℃

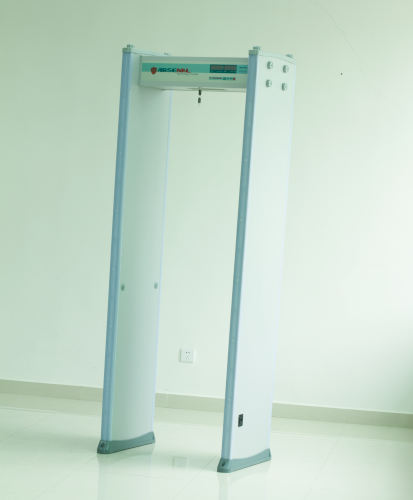

Product appearance

Multi Zone Walk Through Security Scanners Metal Detector Door For events

Multi Zone Walk Through Security Scanners Metal Detector Door For events

Applications

Airports and Seaports

Government Buildings

Embassies

Police Facilities

Court houses

Prisons and jails

Military Bases

Hospitals

Banks

Financial Institutions

Colleges and Schools

Hotels and Casinos
