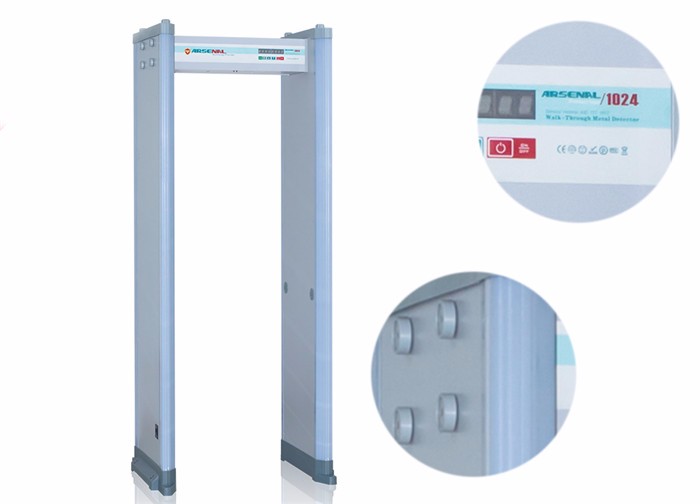

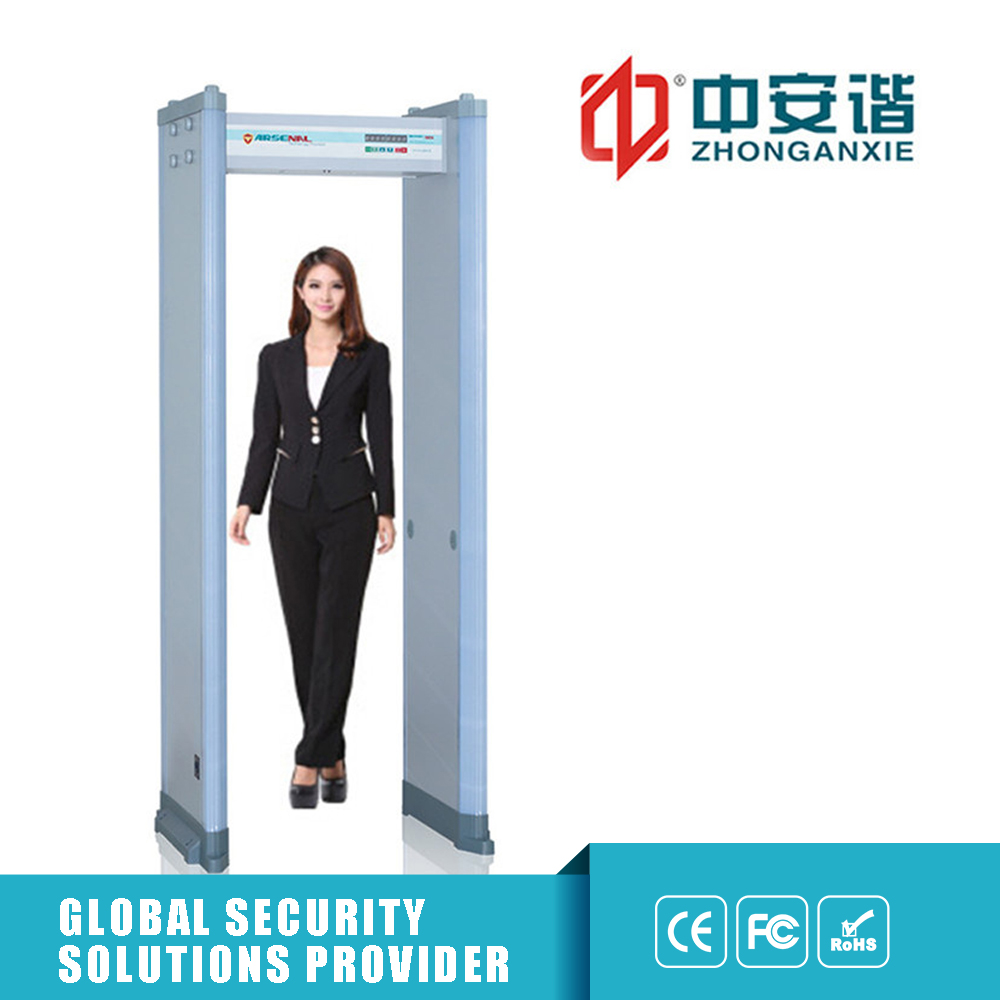

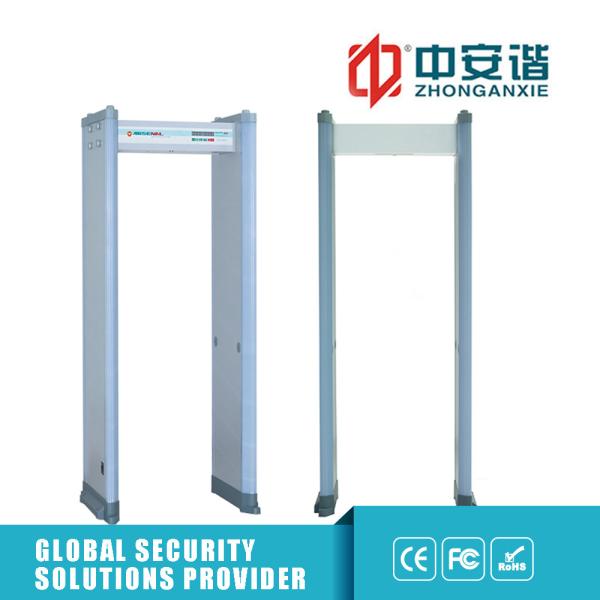

Super Accuracy Sensitivity Anti-Interference Walk Through Metal Detector Gate for Airport
1.Simple and elegant front panel design, reasonable 4 keys management,easy to operate.
2.Patented structural components, and windproof, moistureproof, dustproof design.
3. High performance , high sensitivity , high stability,it can detect 6g ferrous metals (flaky landscape) accurately.
4. Multi-probe , multi-zone, multi- launch and reception , interactive detection technology .
5. Set each zone's sensitivity freely,and it can effectively exclude their own keys, belt buckles, bra, mobile phones and other metal objects.
6. High strength thick door made of fireproof board , forming aluminum column structure , after antioxidant treatment , high hardness ,no deformation , not easy to scratch .
7. Slant main chassis designed all-metal structure , patented large countersunk head bolts for doors, easy to assemble , the structure is more stable.

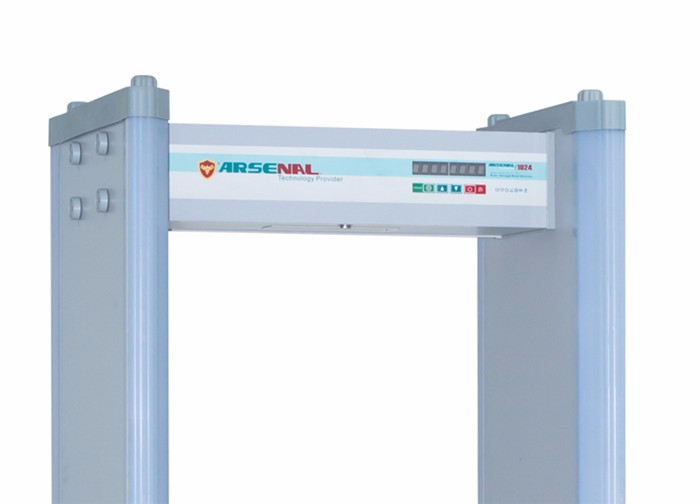

8. The super brightness SMD double district alarm indicators , multi-angle display the hiding place of prohibited items.
9. High-decibel alarm sound speakers,set the size of the alarm sound or be mute according to user's need.
10. It can be connected to the Internet, through a single PC and special software ,it can manage multiple devices ,to meet the need of large-scale activities , events , and users who have to manage multiple devices at a time.
11. Able to link external devices such as : three roller gates, wing gates , access control, attendance, and the devices that need to control and register each other.
12. With upgrade ports, we provide lifelong upgrade services, it can be achieved the secondary development according to user's need.
13. The 3D multi-angle infrared design, can better prevent the interference of strong light, sunlight and other external light ( patented technology )
14. The unique infrared start-stop technology, is better to meet customers' need.
15. Full wraparound high booties , double pivot design , and not affected by uneven ground , it can be better to ensure the stability of the door , which has depended beyond the traditional design.
16. On each side of the door designed is the power interface, which can better meet the users' needs.
17. System with password management techniques.
| Name Model | ZHONGANXIE ARSENAL-1024 |
| Vertical dimension | 2200x620x850mm |
| Vertical channel size | 2000x700mm |
| Main box packing size | 755x435x255mm |
| Detection door packing size | 2290x770x240mm |
| Net weight of main box/detection door | 72kg |
| Gross weight of main box/detection door | 81kg |
| Working voltage | AC90V~250V 50/60Hz |
| Power consumption | 30W |
| Each sensitivity Security level Working frequency range | 300 level 100 level 1-100 bands |
| Working environment temperature | -20℃ ~ 65℃ |
| Installation environment | (W) 100cm* (L) 200cm (minimum range without metal) |
Company Information
Zhonganxie Technology Co., Ltd. , the only technical cooperation company in the mainland is a Hong Kong Group operates United States ARSENAL, located in China 's reform and opening special economic zone city - Shenzhen, Zhonganxie is committed to the introduction of ARSENAL security brand and its technology , the secondary development, production , sales and service of high-tech enterprises.

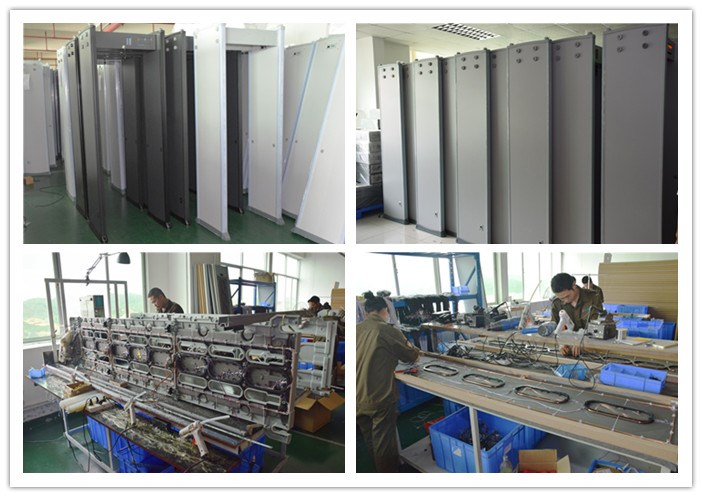

Zhonganxie Technology Co., Ltd mainly in the research, production : metal detectors , X-ray baggage security screening equipment , drugs and explosives detectors , fireworks detectors, vehicle visual search and other security equipments.Security products includ doors, hazardous liquid detector, underground metal detectors, hand-held metal detectors, needle machine, food and drug detection instrument, baggage screening machines, vehicle bottom inspection mirrors and so on. There is one of the four American security brands in the world, USA Arsenal Security Group ,to be technical support ,Zhonganxie Technology has always stood in the forefront of Chinese security manufacturing industry and become the market leader !
